This patented positioning device is specifically tailored for H-beam processing scenarios, directly addressing industry challenges such as the time-consuming and labor-intensive nature of traditional manual positioning, high deviation rates, and frequent welding misalignment. It is compatible with the production of our factory's entire series of H-beam components.

Integrating a support frame, precision positioning rods, a bidirectional clamping mechanism, and a traction adjustment assembly, the device utilizes a limiting mechanism to securely fix the H-beam. The traction mechanism then drives the positioning rods for accurate alignment. This eliminates the need for manual handling and adjustment, enabling rapid alignment of the H-beam's web and flanges. With positioning errors controlled within ±0.3mm, the device significantly enhances processing precision.

Leveraging this patented technology, our H-beam processing efficiency has increased by over 40%. The need for preliminary tack welding for positioning is eliminated, significantly reducing labor costs and rework losses, while achieving a first-pass welding qualification rate of 99.8%.

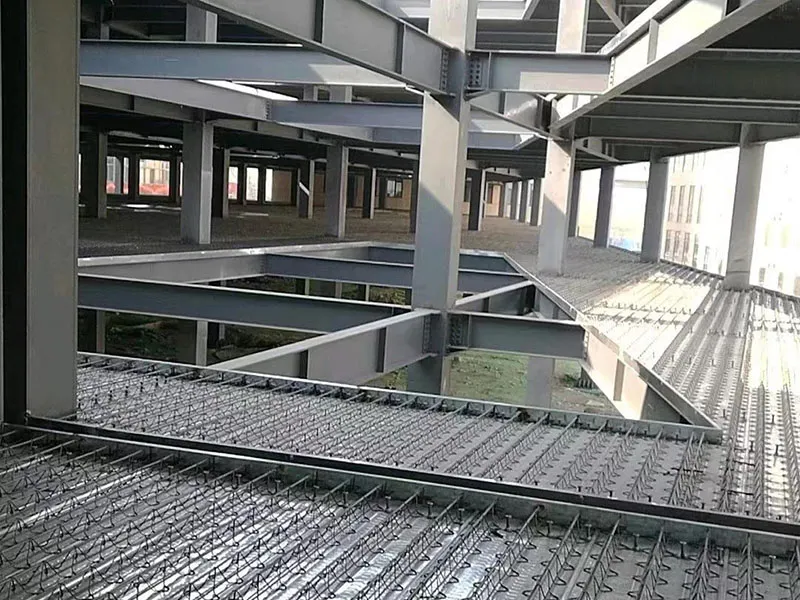

Constructed from wear-resistant and corrosion-proof materials and equipped with a mobile mechanism, the device flexibly adapts to the processing requirements of H-beams of various specifications, balancing practicality with durability. It is suitable for H-beam production in diverse steel structure projects, including industrial plants, bridges, and high-rise buildings.

As a robust steel structure manufacturer, we integrate this patented technology into our entire production workflow. From raw material selection to component fabrication, we maintain strict quality control at every stage. By empowering production with our proprietary patents, we deliver high-precision, high-speed steel structure products to our clients, earning widespread recognition across the industry.
